Huayu Automation HYOO - Syringe Tube Auto Screen Printing Machine Injection Injector Squirt Infusion Outfit Mircrosyringe Microliter Inyeetor Dental Medical Gas Aural Hypodermic

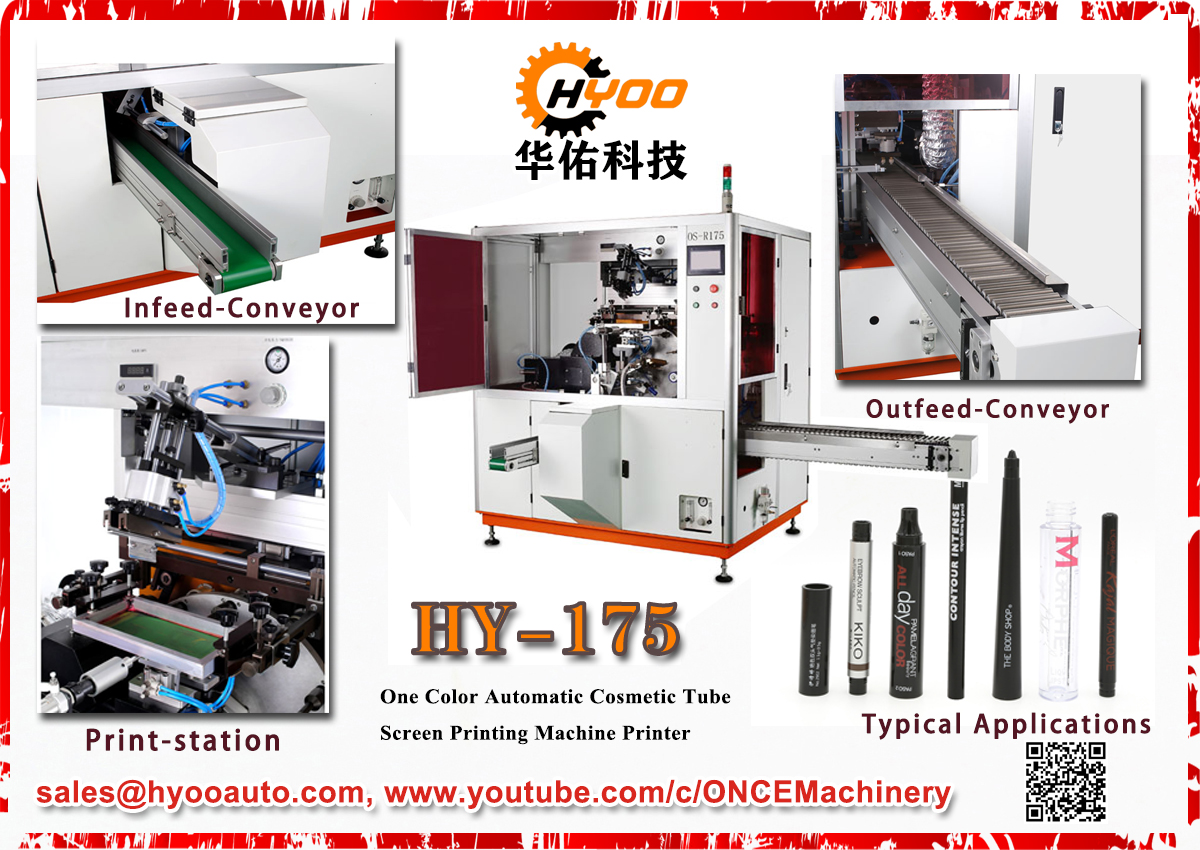

HY-175： One Color Medical Tube Label Marker Screen Printing Printer
Catalogue: static/file/HYOO-ONCE-HY-175-Single-One-Colour-Silk-Screen-Tube-Printing-Machine.pdf
*The HY-175 is 1 color automatic UV screen printer that is suitble for screen printing on flexible or rigid plastic tubes, plastic jars and lids (banding), medical vials & syringes and other cylinders up to 75mm in diameter.
*The HY-175 UV cured screen printing machine offers increased productivity over any semi-automatic solutions and this system holds unrivalled value for the money.
*The HY-175 is driven by a 12 station vertically mounted rotary indexing table that is equipped with a high-end European MOTOVARIO brand (Italian) main drive motor.
*The HY-175 automatic screen printer is also equipped with intelligent UV curing unit which produces high intensity (3KW) curing power utilizing a mercury UV bulb.
*The HY-175 is equipped with infeed belt for automatic feeding of parts onto the mandrels with a mechanical pusher-arm.
Print product size (DiameterxLength):Ø10mm-Ø75mm, L: 20mm-230mm
Max. print area:236x170mm
Max. printing speed:60-80 pcs/min
Registration tolerance:+/- 0.2
Drive:Mechanical driven
Control system:OMRON PLC & Touch Screen
Stations:12 stations
Skype/Email: sales@hyooauto.com
Websites: www.hyooauto.com www.oncemachinery.com
Own Brands: Huayu Automation(logo HYOO), ONCE Machinery(logo ONCE)
Dongguan Huayu Automation Technology Co., Ltd. - Chinese Professional Manufacturer of Screen Printing Machines
