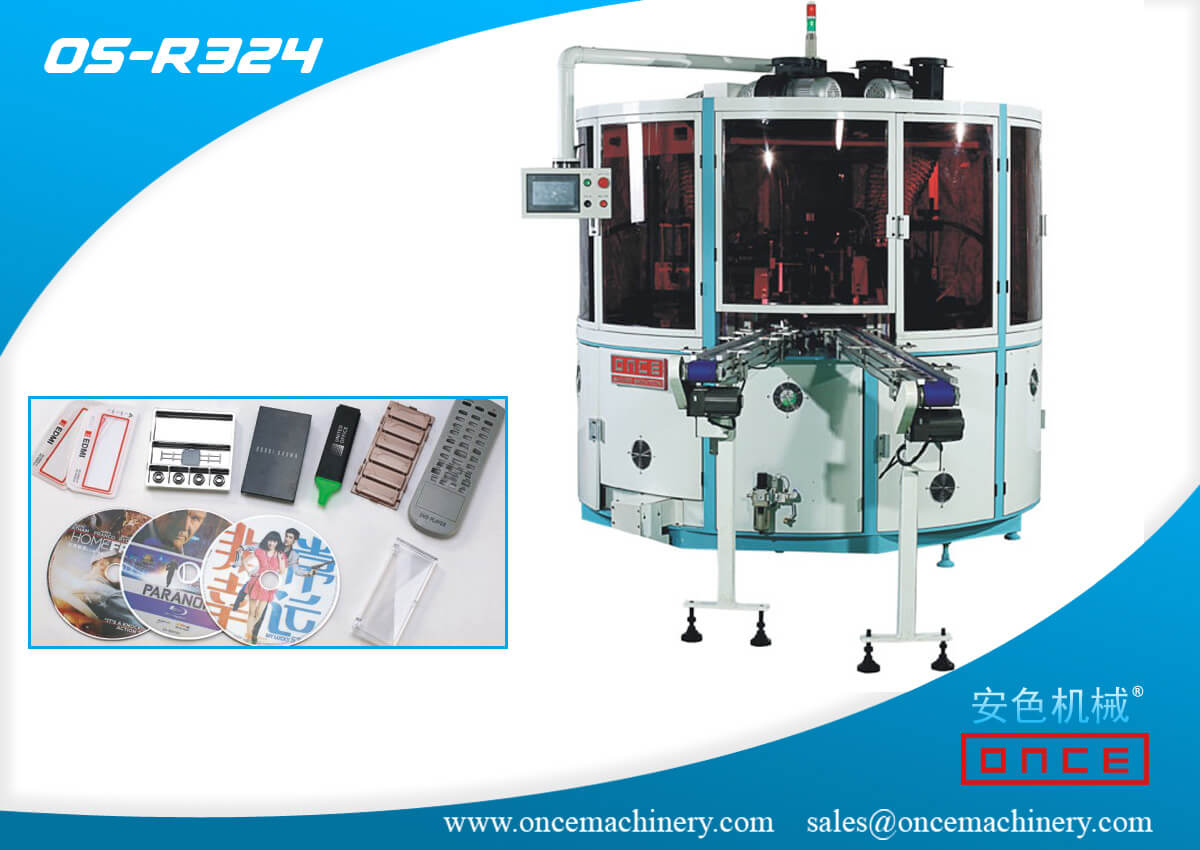

Huayu Automation - HY-R324 Automatic Three Color Flat Bed Screen Printing Machine Printer

HYOO Printing Machine HY-R324 / OS-R324 Production:

Loading, Product Detection, Ionic Wind Dedusting, Printing, UV Curing, Unloading

HYOO Printing Machine HY-R324 / OS-R324 Presentation:

1> Designed for screen printing on flat surfaces, such as cosmetic power compact, rulers, flat pens, transparent panel of electricity meter, CD...

2> Integrate automatic loading/unloading systems, loading/unloading robot hand, product detection, ionic wind dedusting, ultraviolet curing and fast&slow synchronous mechanical transmission, to improve printing efficiency, max. printing speed reaches up to 2700pcs/hour;

3> Advanced modular program controller and touch screen, easy for man-machine dialogue, makes the whole operation easy and simple;

4> Equiped with electronic sensors to achieve automatic monitoring function, such as no object no printing, automatic alarm at low air pressure ;

5> All electrical components and control systems import from Germany, Japan, to ensure high stable printing quality.

HYOO Printing Machine HY-R324 / OS-R324 Specification:

1> Printing Object Dimension: 160(L)*160(W)*100(H) mm

2> Printing Objects: cosmetic power compact, rulers, flat pens, transparent panel of electricity meter, CD...

3> Printing Stations: 24 stations

4> Max. Printing Speed: 2700pcs/hour

5> Power Supply: 380V/480V, 50Hz/60Hz, 3phase

6> Air Supply: 6-8Bar

7> UV Lamp Power: 5Kw

8> Power Consumption: 10Kw

9> Printing Machine main Construction: mechanical driven drive, flame treating system, 3 units print head, 3 units UV system, Italy SITI motor, Omron PLC & Touch Screen, Japan SMC pneumatic parts

10> Printing Machine Dimension: 4950(L)*3150(W)*2350(H) mm

11> Printing Machine Weight: 1500kg

Customized Design and Produce Screen Printing Machines
