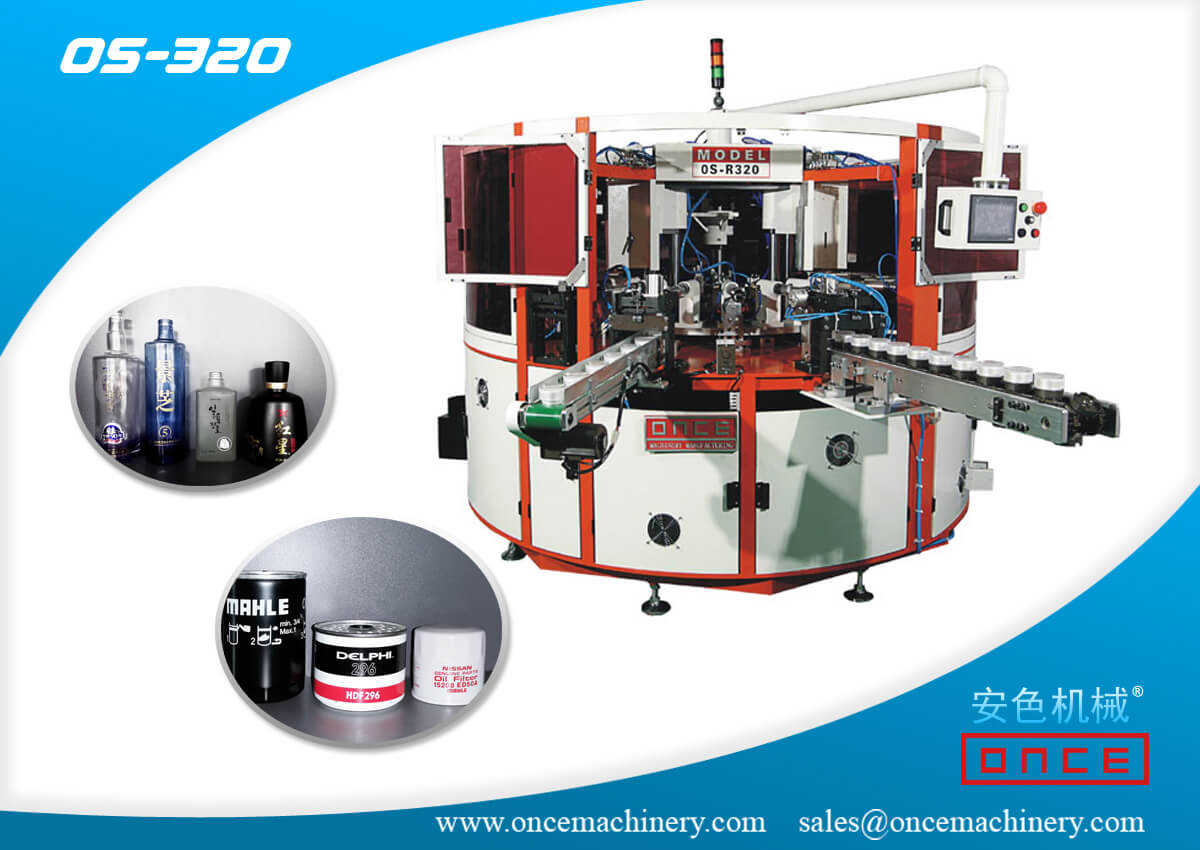

Huayu Automation - HY-R320 Automatic Three Colors Screen Printing & Curing Machine
Huayu Automation Printing Machine HY-R320 / OS-R320 Presentation:
1, Multifunctional automatic three colors screen printing machine, 20 stations, designed for printing on round objects with diamter around 80mm, like tubes, wine bottle caps, cosmetic jars, oil filter, facial cleanser, eyebrow pencil...
2, World class PLC controller and convenient touch screen, easy for man-machine dialogue; the machine works steadily equipping with high precision machanical parts.
3, Automatic detection of "no object, no print", "alarm when low air pressure", "inaccuracy registration" etc.
4, Equipped with original machanical parts from Italy, Germany, Japan, ensuring the superior quality of printing machine, and achieve high efficiency and precision printing.
5, Servo motor driven, allows precise control of angular or linear position, velocity and acceleration.
Huayu Automation Printing Machine HY-R320 / OS-R320 Customized Configuration:
1, Automatic bowl feeder with auto infeed system--to save manpower and fully realize automatic production.
2, Automatic cursor positioning system--to realize multi-color overprinting.
3, USA SIMCO ionic wind dust removal system--to reduce uncertain factors of production environment
4, Italy CCD system for waste detection--to reduce manual visual inspection
5, Installing screen printing, hot stamping, heat transfer etc. systems--to meet market diversified demand
Huayu Automation Printing Machine HY-R320 / OS-R320 Specification:
1, Printing Object Dimension: Ｄiameter 10mm-60mm, Length: 30mm-250mm
2, Printing Objects: tubes, bottole caps, cosmetic jars, cosmetic bottles, cosmetic tubes, small glass bottles, flexible or rigid plastic tubes, plastic jars and lids (banding), medical vials & syringes and other cylinders up to 80mm in diameter
3, Printing Stations: 20 stations
4, Max. Printing Speed: 60pcs/min
5, Power Supply: 380V/480V, 50Hz/60Hz, 3phase
6, Air Supply: 6-8Bar
7, UV Lamp Power: 1.8Kw
8, Total Power: 15Kw
9, Printing Machine main Construction: OMRON PLC & Touch Screen, Servo Motor Drive, CIMCOR Deionizing device, Flame treating system, 3 units Print heads, 3 units Fusion UV system, ITALY SITI Motor, Japan SMC Pneumatic parts
10, Printing Machine Dimension: 5000(L)*2800(W)*2350(H) mm
11, Printing Machine Weight: 3500kg
Customized Design and Produce Screen Printing Machines
