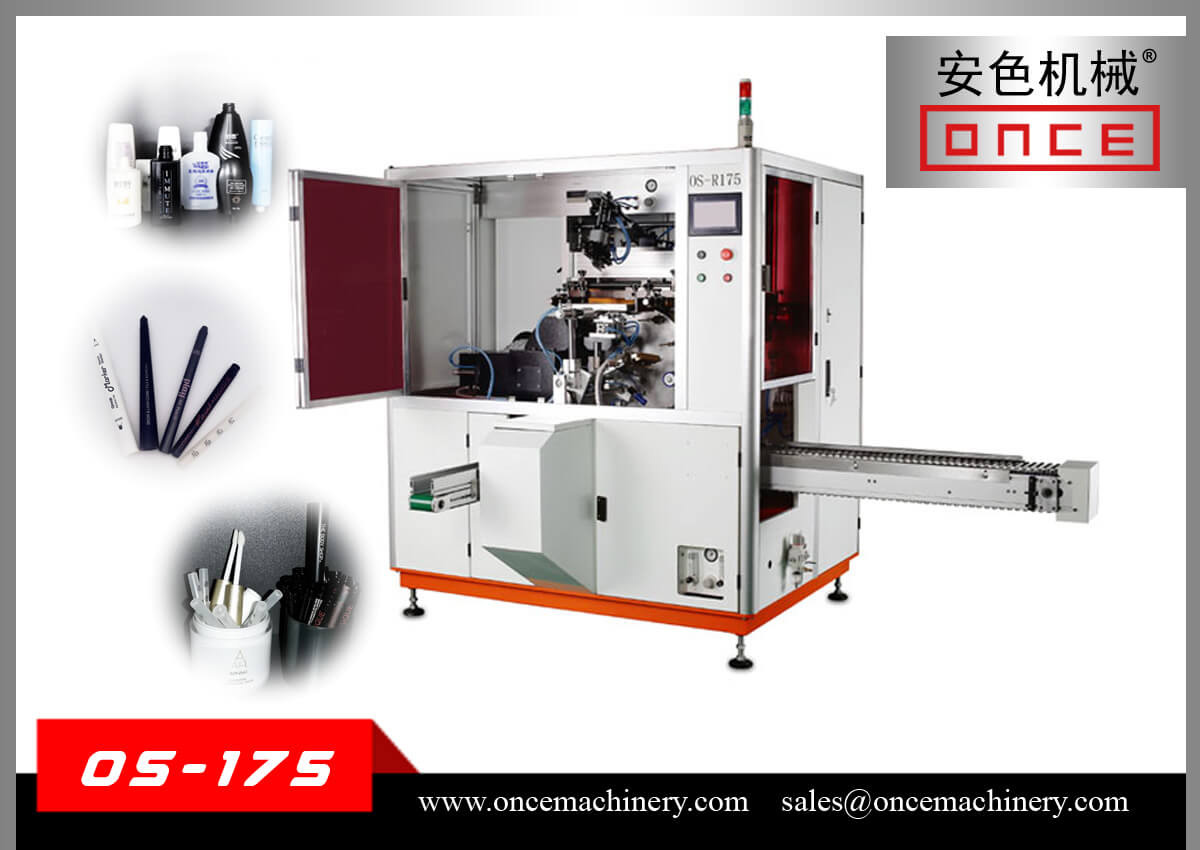

Huayu Automation - HY-175 Automatic One Color Screen Printing and Curing Machine
Huayu Automation Printing Machine HY-175 / OS-175 Production:
Feeding, Flame Treating, Ionic Wind Dedusting, Magnetic Motor, Printing, UV Curing System, Discharging
Huayu Automation Printing Machine HY-175 / OS-175 Presentation:
1> Designed for screen printing on small circular objects, such as tubes, bottole caps, cosmetic jars etc., achieve multi-color printing and precise color register;
2> Main drive system transismission equipments are from reputed and famous European brands, with precise and high-speed indexerk, to ensure more stable and reliable operation, max. printing speed reaches up to 4800pcs/hour;
3> Equiped with world class PLC controller and convenient touch screen, it's easy for man-machine dialogue, makes the whole operation easy and simple;
4> Printing ink can be colidified by UV curing or infrared drying, to reach more ideal effect of solidification on the basis of ensuring stable performance and power saving;
5> Automatic monitoring function includes ionic wind dedusting, no object no printing, automatic alarm at low air pressure and waste/wrong material etc.;
6> Automatic feeding system and discharge manupulator, ensuring continuous and stable printing operation, and avoiding scratching surface of printed object during printing process, also guarantee operators' safe operation.
Huayu Automation Printing Machine HY-175 / OS-175 Customized Configuration:
1> Automatic feeder--to save manpower and fully realize automatic production;
2> Servo & Cursor Positioning System--to achieve precise color register for offset printing and hot stamping;
3> Mechanical Positioning Device--to realize multi-color overprinting;
4> Transformation function between screen printing and hot stamping
Huayu Automation Printing Machine HY-175 / OS-175 Specification:
1> Printing Object Dimension: Ｄiameter 10mm-75mm, Length: 20mm-230mm
2> Printing Objects: tubes, bottole caps, cosmetic jars, cosmetic bottles, cosmetic tubes, small glass bottles, flexible or rigid plastic tubes, plastic jars and lids (banding), medical vials & syringes and other cylinders up to 75mm in diameter
3> Printing Stations: 12 stations
4> Max. Printing Speed: 4800pcs/hour
5> Power Supply: 380V/480V, 50Hz/60Hz, 3phase
6> Air Supply: 6-8Bar
7> UV Lamp Power: 3.6Kw
8> Total Power: 4.5Kw
9> Printing Machine main Construction:OMRON PLC & Touch Screen, Mechanical Drive, Deionizing device, Flame treating system, Print head, intelligent UV system, ITALY SITI Motor, Japan SMC Pneumatic parts, Japan Keyence Photoelectric Sensor, Japan OMRON Frequency Converter, Japan SANKYO Indexer
10> Printing Machine Dimension: 1500(L)*1180(W)*1900(H) mm
11> Printing Machine Weight: 1500kg
Customized Design and Produce Screen Printing Machines
