Huayu Automation - Automatic Flat or Tube Objects Screen Printing Machine for Porcelain Ceramic
Porcelain/Ceramic is beautiful in shape and excellent in texture. It is very popular also because of its pretty and novel decoration. The methods used to decorate patterns on ceramics at the beginning mainly include drawing, engraving, painting and decal transfer with copper plate and flat plate printing. In recent years, the continuous progress of screen printing technology has made its application in ceramic printing increasingly widespread. The ceramic decorative patterns printed by screen printing are more refined, the color is more bright, the graphics and texts are rich in three-dimensional, and the ceramic is durable and does not fade. The screen printing process mainly includes ceramic direct screen printing decoration process and ceramic decal screen printing.
Nowadays, the surface of flat and tube ceramics are decorated via screen printing technology, how to achieve it?
Please view the following HYOO screen printing machines for choice.
For Flat Ceramics:

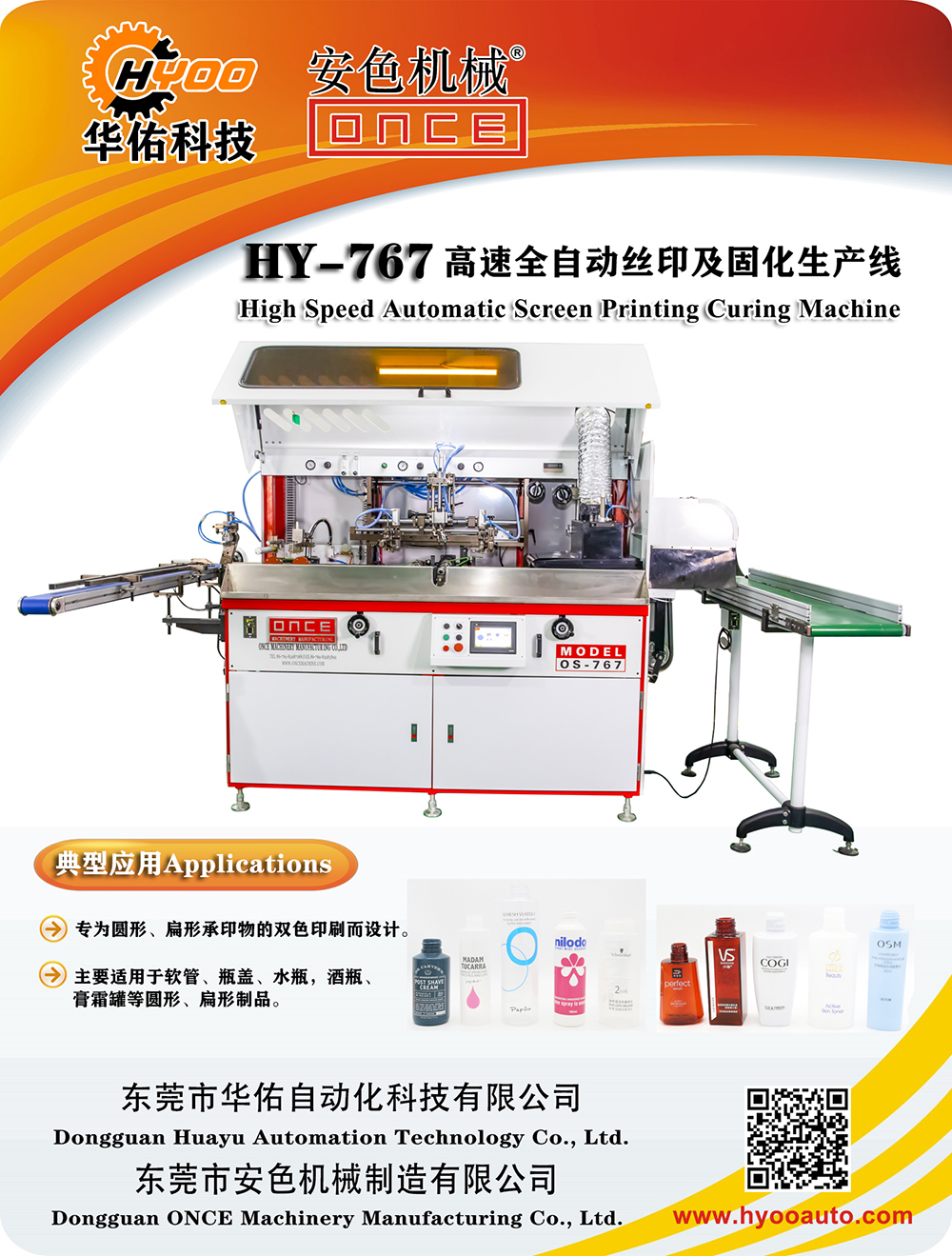

(1) HY-767-1: Automatic 1 Color UV Silk Screen Cylindrical Printing Machine
http://www.hyooauto.com/Automotive-Oil-Industry-Screen-Printing-Machines/HY-767-1.html
Round container size: Diameter: φ10-100mm, Height: 30-260mm
Round container max. print area: L 260 x W220mm
Oval container size:R: 10-250mm, Height: 30-260mm
Oval container max. print area:L 120 x W220mm
Max. printing capacity: 70 pcs/min
Drive: Mechanical Driven
Machine size(LxWxH): Main machine: 2300x1800x1700mm
Machine Weight: 1600 KG
(2) HY-R324: Automatic 3 Colors Flat Screen Printing Machine
http://www.hyooauto.com/Food-and-Beverage-Industry-Printing-Machines/HY-R324.html
Print Object size: L160 x W160 x H100 mm
Max. print area: L110 x W90 mm
Max. printing speed: 45 pcs/min
Drive: Mechanical driven
Machine dimension: L4950 x W3150 x H2350 mm
Machine Weight: 1500 KG
For Tube Ceramics:
(1) HY-767-1: Automatic 1 Color UV Silk Screen Cylindrical Printing Machine
http://www.hyooauto.com/Automotive-Oil-Industry-Screen-Printing-Machines/HY-767-1.html
Round container size: Diameter: φ10-100mm, Height: 30-260mm
Round container max. print area: L 260 x W220mm
Oval container size:R: 10-250mm, Height: 30-260mm
Oval container max. print area:L 120 x W220mm
Max. printing capacity: 70 pcs/min
Drive: Mechanical Driven
Machine size(LxWxH): Main machine: 2300x1800x1700mm
Machine Weight: 1600 KG
(2) HY-230 : Automatic 2 Colors Screen Printing Curing Machine
http://www.hyooauto.com/Medical-Pharmacy-Industry-Printing-Machines/HY-230.html
Print product size (DiameterxLength): Ø8mm-Ø28mm, L: 20mm-230mm
Max. print area: 236x170mm
Max. printing speed:60-80 pcs/min
Registration tolerance: +/- 0.2
Drive: Mechanical driven
Machine Dimension (LxWxH): 2600x1700x1900mm
Machine Weight: 1500 KG
(3) HY-175: Automatic 1 Color Tube Screen Printing Machine
http://www.hyooauto.com/Cosmetics-Beauty-Care-Industry-Printing-Machines/HY-175.html
Print product size (DiameterxLength): Ø10mm-Ø75mm, L: 20mm-230mm
Max. print area: 236x170mm
Max. printing speed:60-80 pcs/min
Drive: Mechanical driven
Machine Dimension (LxWxH): 1500x1180x1900mm
Weight: 1500 KG
Customized Design and Produce Screen Printing Machines
Consult more Printing Machines on www.hyooauto.com www.oncemachinery.com
