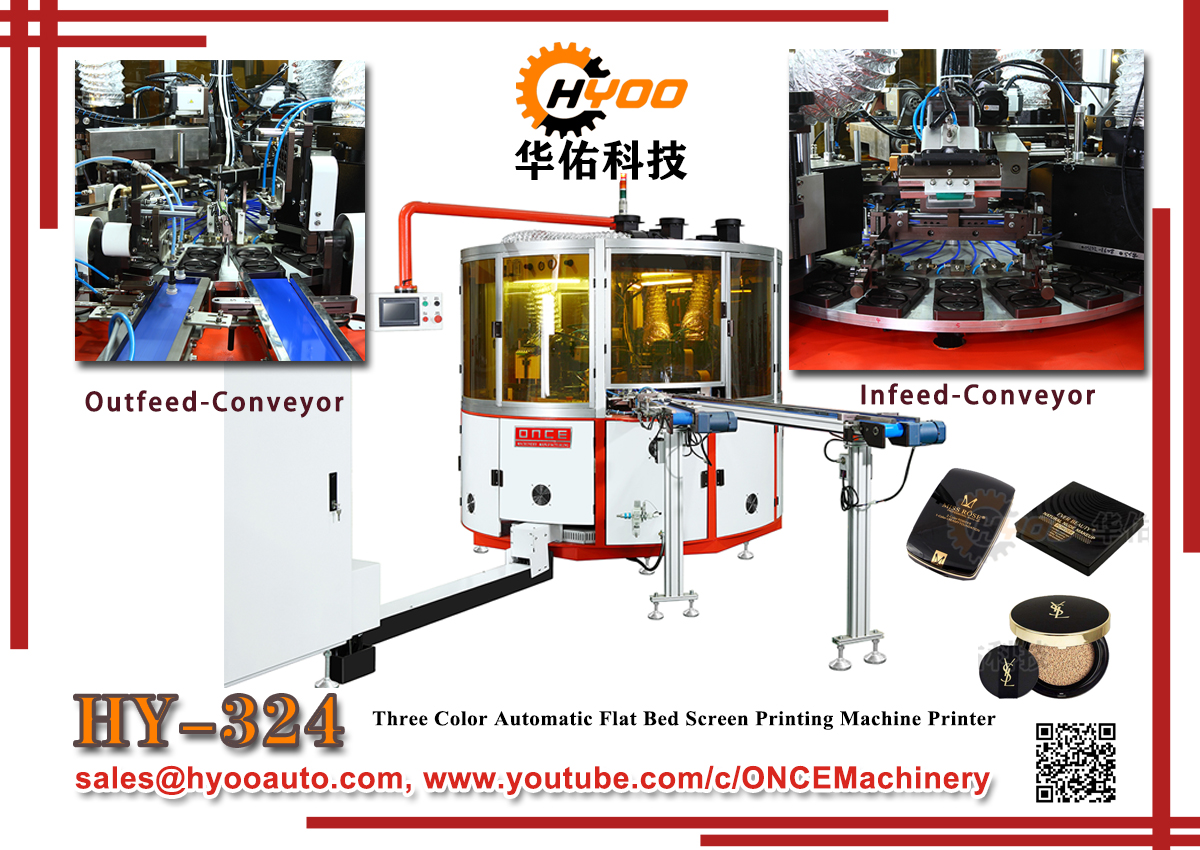

Flat 3 Colors HY-R324 Fully Automatic UV Curing Screen Printing Machine Printer Flat Bed Plastic Box Container Medical Chemical Cosmetics Stationery
APPLICATION: HY-R324 can print flat surface products like Flat Plastic Powder Compact Box, flat Meter, Transparent Plate, flat Stationery Ruler, flat Pen, CD, flat Medical Media Bottles, flat Solution Bottles, flat Cell and Tissue Culture Flask, flat Sample Containers, flat Pill Cases... widely match the print requirements of Medical,Pharmacy,Chemical,Body Care,Cosmetics,Beauty Care,Electronics,Stationery industries.
HY-R324： 三色全自动平板丝网印刷机打印机
Print product size: L160 x W160 x H100 mm
Max. print area: L110 x W90 mm
Max. printing speed:45 pcs/min
APPLICATION: HY-R324 can print flat surface products like Flat Plastic Powder Compact Box, flat Meter, Transparent Plate, flat Stationery Ruler, flat Pen, CD, flat Medical Media Bottles, flat Solution Bottles, flat Cell and Tissue Culture Flask, flat Sample Containers, flat Pill Cases... widely match the print requirements of Medical,Pharmacy,Chemical,Body Care,Cosmetics,Beauty Care,Electronics,Stationery industries.
Typical Features of 3 Color Automatic Flat Bed Screen Printing Machine HY-R324
High precision mechanical rotary indexer (24 stations)
OMRON PLC controlled with touch screen
Mechanically synchronized print heads for precise printing results
Automatic loading and unloading system
Quick and easy set-up and change-overs
Motor controlled optical pre-registration device
Adjustable squeegee angle and height
Up to 110 x 90mm (4.33” x 3.54”) print area
HANOVIA brand UV Curing units (US Made)
Equipped with interlocking safety doors
Printing speeds up to 45ppm
HY-R324 is a fully automatic UV screen printing machine designed for flat surfaces that offers increased productivity and unrivalled value, available print dressing cases, stationery rulers, flat pens, etc. Our HY-R324 is driven by a SANKYO rotary positioning drive system and features a SITI main drive motor with a barrel cam.
The UV screen printing inks are automatically cured with high powered UV lamps positioned after each printing station. After loading of the flat objects there is a pre-flame treating station and de-ionizing / cleaning station (optional) to ensure quality printing results with fewer defects.
