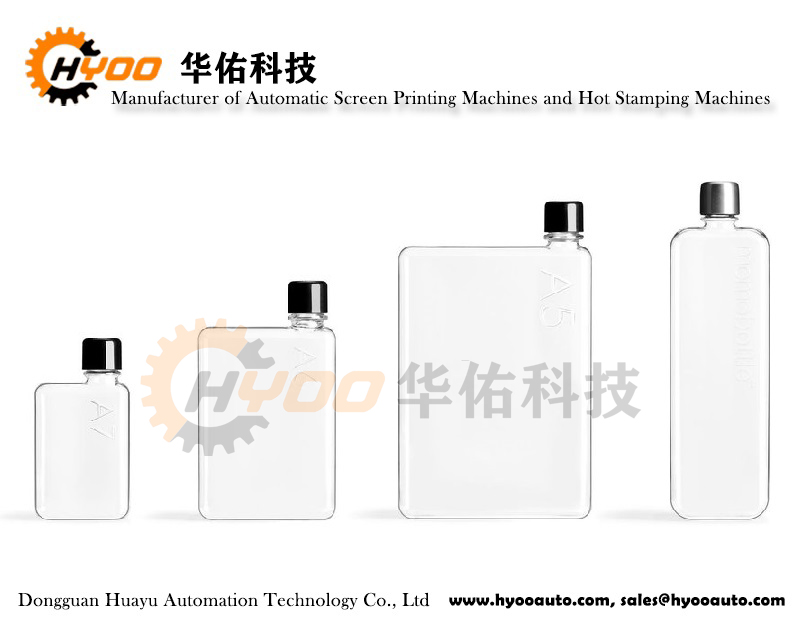

Huayu Automation HYOO - Flat Bottle Screen Printing Machine Automatic Screen Printer Plastic PP PE PET ABS Containers
It's widely used to print cylindrical, round, oval, flat, square containers.
The whole machine adopts the principle of mechanical synchronization; realizes full automation one-stop production line; flexibly combines single-color to multi-color printing.
To meet the requirements of various printing and packaging processes, it can be customized and equipped with functions such as automatic labeling / hot stamping / CCD detection, to maximize multiple uses and functions.
Due to specialized electronic sensors, it can achieve automatic monitoring function such as “no object, no printing” and automatic alarm when air pressure is too low.
Typical Features of One Color Automatic UV Silk Screen Cylindrical Printing Machine HY-767CE
1 color automatic UV bottle screen printing machine
Fast print speeds up to 4200 bottles per hour
Accurate color to color registration
Prints on round, oval and square bottles
Mechanical driven bottle transport in high stability
Omron PLC and touch screen controlled
Italy SITI brand main motor
Intelligent UV system saves energy consumption
Integrated anti-static dust blowing and bottle surface flame treating
型号： HY-767CE
Round container size: Diameter: φ10-100mm, Height: 30-260mm
Round container max. print area: L 260 x W220mm
Oval container size: R: 10-250mm, Height: 30-260mm
Oval container max. print area: L 120 x W220mm
Drive: Mechanical Driven
Control system: OMRON PLC & Touch Screen
Max. printing capacity: 70 pcs/min
Registration tolerance: +/- 0.2 mm
Infeed conveyor: 1 unit, length: 2 meters
Deionizing device: 1 unit
Flame treating system: 1 unit, LP gas
Motor: ITALY MOTOVARIO
Print head: 1 unit
UV system: 1 unit intelligent UV system, 5KW per each
Outfeed conveyor: 1 unit, Length: 2 meters
Frequency Converter: OMRON
Pneumatic parts: FESTO or SMC
Electrical: 380V 3phase 50Hz
Air requirement: 5-7 bar
Air consumption: 85 liter/ minute max. (per color)
Power consumption: 5.4 KW/color x 1
Machine size(LxWxH): Main machine: 2300x1800x1700mm
Weight: 1600 KG
